Description

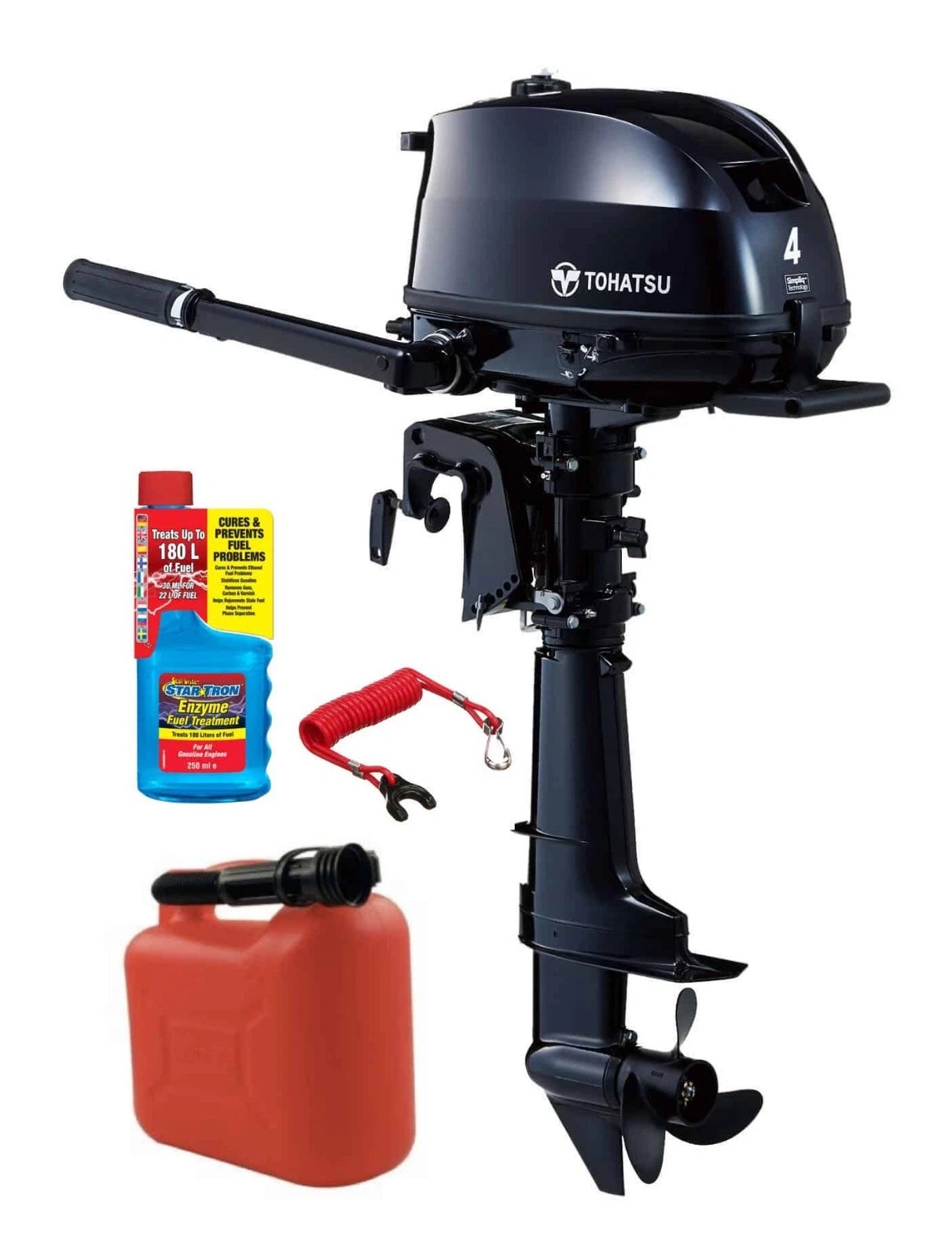

4HP Tohatsu MFS4DD Short Shaft 4-Stroke Outboard with Internal Fuel Tank aswell as a External Fuel Connector.
The Tohatsu 4 hp 4-stroke gives you peace of mind when selecting an outboard. With Tohatsu’s excellence in engineering, you can be assured that you are choosing an engine that will be with you for years to come.
This portable best-seller has been upgraded with newly designed top and bottom cowls based on Tohatsu Design Philosophy for Marine Products with ergonomically designed front and back carrying handles.
In addition, you can now store your engine in 3 different positions without worrying about oil spillage.
*Please refer to Owner's Manual for storage and transportation guidelines.
Features
Tohatsu 4 hp 4-Stroke Benefits
Newly designed top and bottom cowls based on Tohatsu Design Philosophy for Marine Products
3-way storage positions without worrying about oil spill
Light and compact!
Front mounted shift lever, an industry first in its class!
Designed with proven technology
Greatly reduced vibration for smooth and stable running at all speeds
Greatly reduced induction noise for a quieter ride
Ultra-low emission, EPA and CARB 3-Star rating approved
Easy Operation and Handling
Newly designed Tohatsu’s unique front and back carrying handles for easier transportation
Digital CD ignition for easier engine starting, quicker throttle response and smoother trolling
Recoil starter with larger reel making manual starting fast and easy
Shallow water drive
6 trim positions
Adjustable steering friction for reducing steering effort
New longer tiller handle (110mm extension)
Fundamentals for User Convenience and Reliability
Through-the-prop exhaust for a quieter ride
Thermostatically controlled cooling system for consistent engine temperature
Stainless steel water pump housing liner for outstanding durability
High grade marine aluminum alloy that provides the ultimate protection against corrosion
Zinc coating on internal water passages for superior corrosion resistance
Aluminum propeller
Protection
Low oil pressure indicator
Safety lanyard (an essential protection feature standard on all Tohatsu outboards)
Start-in-gear protection for safer engine starting
Over-rev. limiter
Specification
Engine 4 Stroke 1 Cylinder
Output 4 ps (2.9 kw)
Displacement 123 cc (7.5 cu.in.)
Bore x Stroke 59 x 45 mm (2.32 x 1.77 in)
Starting Manual
Control Type Tiller Handle
Gear Shift Forward - Neutral - Reverse
Gear Ratio 2.15:1
Propeller Selection Range 6" - 9"
Transom Height 15"
Fuel Unleaded Gasoline (87 Octane)
Oil Type NMMA Certified FC-W® 4-stroke oil** SAE 10W-30/40 (SF, SG, SH, SJ)
Oil Capacity 450 mL (15 fl. oz.)
Fuel Tank 1.1L (0.29 US Gal.) Integral Tank (Includes an External Fuel Tank Connector installed on engine to allow user to use an optional external fuel tank)
Weight* 25 kg (55 lbs.)
Alternator Output Optional: 12V, 60W, 5A
Max. RPM Range 4,500 - 5,500
Digital CD Ignition System Standard
Start In Gear Protection Standard
Thermostat Controlled Cooling System Standard
Through-The-Prop Exhaust Standard
Oil Pressure Warning Standard
Shallow Water Drive Standard
