Product Description

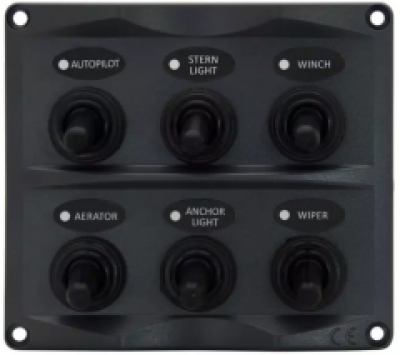

6P Modern Design Toggle Switch Panel (Dark Gray)
Introducing the new design of heavy-duty toggle switch panels with compact panel size and competitive price. All switches and sockets are equipped with water-resistant PVC boots or caps. Hidden LED behind label stickers gives clear indication when the switches are turned on while maintaining the sleek design (YIS Marine Exclusive).
INQUIRE NOW
Features
Compact panel size
Unique trendy faceplate design (two colors available: Dark Gray /White)
Heavy duty metal toggle switches with water-resistant PVC boot
Water-tight mounting gasket included
LED indication when device turned ON
28pcs assorted label stickers included
IP66 – Protected against powerful water jets from all directions (when mounted)
Spray-proof in-line ATP/ATC fuse holders with fuses pre-installed
Specification
Faceplate | Sleek Design Plastic (ABS)
Circuit Protection | IIn-line 15A ATP fuses pre-installed (per 2 branches)
Switch Ratings | 15A @ DC 12V / 10A @ DC 24V (Dual Voltage)
Panel Rating | Max Cumulative Amp: 25A per 2 branches(Max possible Amperage for each panel is determined by the lower of total switches ratings or the Max Cumulative Amperage listed above)
Dimensions
Product Dimensions (W x H) | 107 x 95mm
Mounting Depth | 95mm
Panel Cut-out (W x L) | 93 x 76mm
